Network Rail is responsible for delivering reliable travel services to the millions of commuters who utilise Europe’s fastest-growing railway every day. As well as the vast number of commuters that Network Rail supports, the not-for-profit organisation is also an essential component of many business supply chains.
For example, along Network Rail’s freight lines, huge quantities of materials such as grit and sand are transported all over the UK. During this transportation, it is common for vehicles to leak small quantities of grit across the tracks whilst they’re in transit.
Cranks & Grit Leaks
This leaking can become a serious issue. Throughout contemporary railways, cranks are utilised to shift tracks from one line to another – thus allowing trains to access different lines and thus reach different destinations. Leaked grit can wreak havoc on these cranks, which, as one can imagine, is at best very inconvenient, or at worst potentially very dangerous.
In order to combat the crank degradation caused by grit and sand leaks, Network Rail deployed various measures such as CCTV to monitor freight cargo and crank operation, as well as improving the sealing within the carriages which transport said grit and sand. Whilst effective, these measures did not completely solve the problem.
The Third Line of Defence
As such, Network Rail enlisted the services of Cox Wokingham to develop the third line of defence to better protect the cranks in operation throughout the enormous network of tracks under the responsibility of the organisation.
Cox Wokingham began the close working partnership with Network Rail by first seeking to understand precisely what was required in order to make the project a success. In order to effectively combat leaked grit and sand from seeping into the cranks, it became clear that a functional cover would need to be designed and installed. However, this cover would not only have to keep out grit, but it would also have to consistently withstand the extremely testing conditions that components operating across rail networks are subjected to.
Off the back of these initial discussions, and with the unique requirements in mind, specialist Cox Wokingham designers began formulating a product which could effectively stop grit from getting into rail cranks.
The Production Process

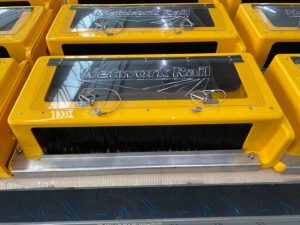

After an iterative process of design and prototyping, the productive relationship between Cox and Network Rail led to the creation of a bespoke crank cover (see below picture).
The crank cover was produced using a bright yellow polycarbonate base structure and features a clear plastic roof with Network Rail branding. To achieve the highly-detailed finish, the crank covers were firstly vacuum formed. They were then finished via a process of CNC machining and fabrication.
Crucially, Network Rail was able to save immense amounts of time and money as Cox Wokingham managed the entire process, from end-to-end.
In practice, this meant that Cox were responsible for:
- Initial concept design
- Prototyping
- Iterative product design
- Production (Inc. Toolmaking)
- Assembly/sub-assembly
- Packaging
- Distribution
With Cox Wokingham managing the entire production journey, all the way from inception to delivery, Network Rail were provided with a solution which was fully assembled out of the box and could be immediately fixed to the cranks on the tracks. This again saved Network Rail immeasurable time and money.
Moreover, even more fundamental than a fully assembled product, the crank cover designed by Cox Wokingham in conjunction with Network Rail solved the problem it was intended to solve.

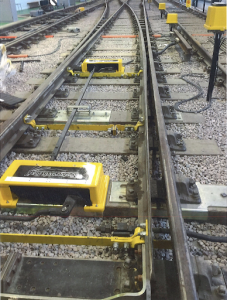

See the crank cover in action below.
